Last updated

Add a gas station

Traditional elections have minimal safeguards against fraud, corruption, mishandling of ballots, and intentional or unintentional disruptions. Even where voting is available by mail or online, elections can be costly, inefficient, and subject to human error.

By using blockchain technology, elections could be made more convenient, transparent, and reliable. For example:

  • Every vote can be recorded as a public transaction that can't be altered.
  • Voters can remain anonymous with votes linked to an encrypted digital fingerprint instead of government-issued identification.
  • Election results can be independently verified by anyone.

However, there is one main drawback to using a blockchain to cast votes in an election. Because every vote is a public transaction that changes the state of the blockchain, every vote requires computational resources and incurs a processing fee—commonly referred to as a gas payment.

Paying for transaction processing is normal in the context of many business operations, but paying to vote is essentially undemocratic. To address this issue, Kadena introduced a transaction processing clearing house for paying fees called a gas station.

A gas station is an account that exists only to make transaction fee payments on behalf of other accounts and under specific conditions. For example, a government agency could apply a fraction of its budget for a traditional election to fund a gas station. The gas station could then pay the transaction fee for every voting transaction, allowing all citizens to vote for free.

For more information about the introduction of gas stations, see The First Crypto Gas Station is Now on Kadena’s Blockchain.

Before you begin

Before you start this tutorial, verify the following basic requirements:

Create a voter account

In the previous tutorial, you voted with your administrative account. The transaction was successful because the account had sufficient funds to pay the transaction fee. For this tutorial, you need to create a new voter account on the development network. Initially, you'll use the voter account to see that voting in the election application requires you to have funds in an account.

The steps for creating the voter account are similar to the steps you followed to create your administrative account.

To create a voter account:

  1. Verify the development network is currently running on your local computer.

  2. Open and unlock the Chainweaver desktop or web application and verify that you're connected to development network (devnet) from the network list.

  3. Click Keys in the Chainweaver navigation panel.

  4. Click Generate Key to add a new public key to your list of public keys.

  5. Click Add k: Account for the new public key to add a new account to the list of accounts you are watching in Chainweaver.

    If you expand the new account, you'll see that no balance exists for the account on any chain and there's no information about the owner or keyset for the account.

  6. Open the election-dapp/snippets/create-account.ts file in the code editor on your computer.

    You'll notice that this script is similar to the ./snippets/transfer-create.ts script you used previously. The script imports functions from the Kadena client library to call the create-account function of the coin contract to create a voter account. However, themain function doesn't pass any funds or sign for the COIN.TRANSFER capability.

  7. Open the election-dapp/snippets folder in a terminal shell on your computer.

  8. Run the following command to create a new voter account.

    npm run create-account:devnet -- k:<voter-public-key>
    npm run create-account:devnet -- k:<voter-public-key>

    Remember that k:<voter-public-key> is the default account name for the new voter account that you generated keys for. You can copy this account name from Chainweaver when viewing the account watch list.

    After a few seconds, you should see a status message:

    { status: 'success', data: 'Write succeeded' }
    { status: 'success', data: 'Write succeeded' }

    You can also verify that the account was created by checking the account details using the Kadena client:

    npm run coin-details:devnet -- k:<voter-public-key>
    npm run coin-details:devnet -- k:<voter-public-key>

    After running this command, you should see output similar to the following for the new voter account:

    {  guard: {    pred: 'keys-all',    keys: [      'bbccc99ec9eeed17d60159fbb88b09e30ec5e63226c34544e64e750ba424d35e'    ]  },  balance: 0,  account: 'k:bbccc99ec9eeed17d60159fbb88b09e30ec5e63226c34544e64e750ba424d35e'}
    {  guard: {    pred: 'keys-all',    keys: [      'bbccc99ec9eeed17d60159fbb88b09e30ec5e63226c34544e64e750ba424d35e'    ]  },  balance: 0,  account: 'k:bbccc99ec9eeed17d60159fbb88b09e30ec5e63226c34544e64e750ba424d35e'}

    If you view the account in Chainweaver, you'll see similar information for the new account.

Attempt to cast a vote

To attempt to cast a vote with the voter account:

  1. Verify the development network is currently running on your local computer.

  2. Open and unlock the Chainweaver desktop or web application and verify that:

    • You're connected to development network (devnet) from the network list.
    • Your voter account name with the k: prefix exists on chain 1.
    • Your voter account name has no KDA account balance (0) on chain 1.

  3. Open the election-dapp/frontend folder in a terminal shell on your computer.

  4. Install the frontend dependencies by running the following command:

    npm install
    npm install

  5. Start the frontend application configured to use the devnet backend by running the following command:

    npm run start-devnet
    npm run start-devnet

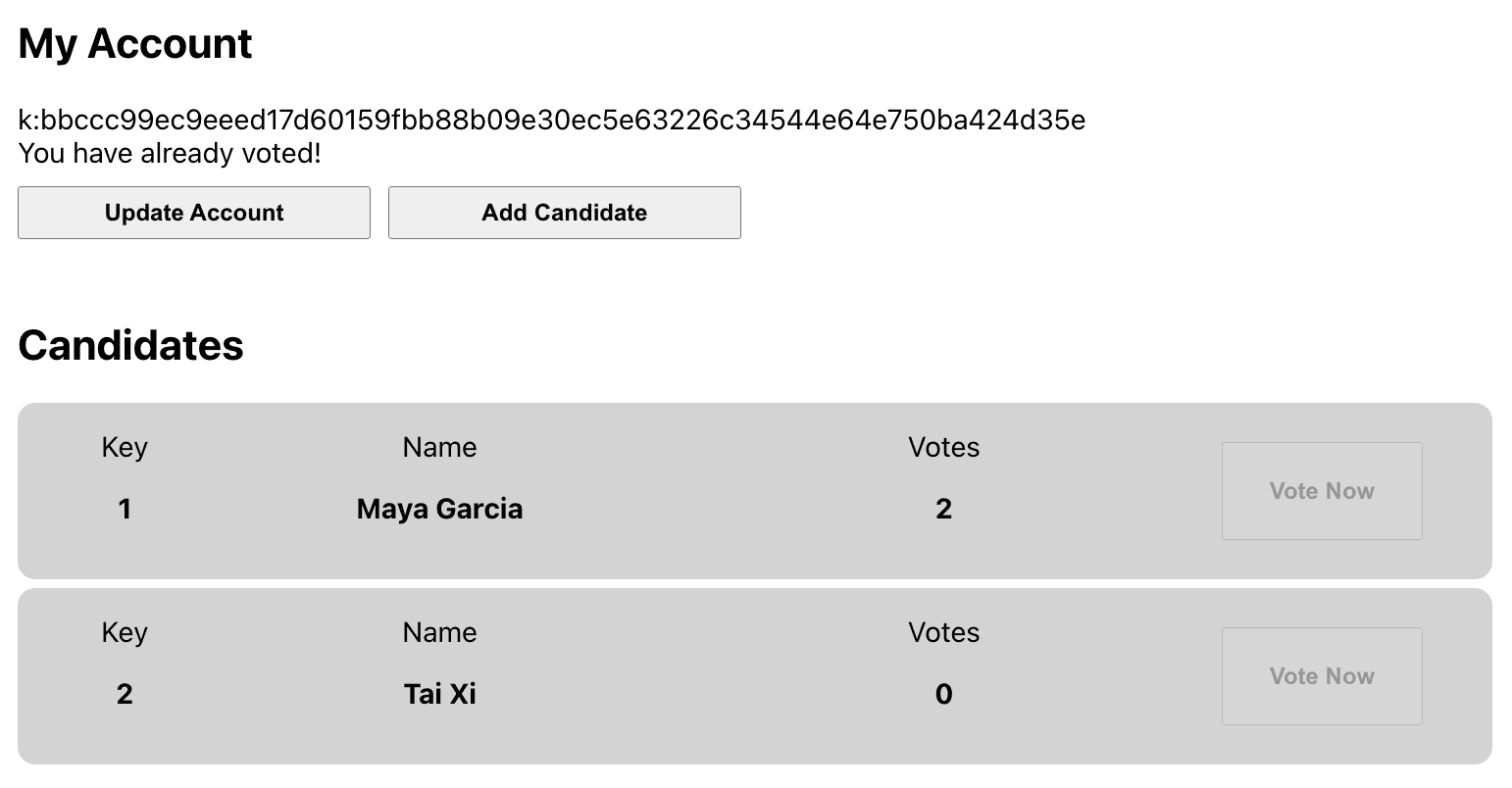

  6. Open http://localhost:5173 in your browser and verify that there's at least one candidate listed.

  7. Click Set Account.

  8. Copy and paste the voter account name from Chainweaver into the election application, then click Save.

  9. Click Vote Now for a candidate, sign the transaction, then open the Developer Tools for your browser and view the console output.

    In the console, you'll see an error similar to the following:

    Attempt to buy gas failed with: (enforce (<= amount balance) "...: Failure: Tx Failed: Insufficient funds
    Attempt to buy gas failed with: (enforce (<= amount balance) "...: Failure: Tx Failed: Insufficient funds

    With the current implementation, it isn't possible to vote using an account that has a zero balance.

Implement the gas payer interface

In this tutorial, you'll add a second Pact module—the election-gas-station module—to your election smart contract.

To create the gas station module:

  1. Open the election-dapp/pact folder in the code editor on your computer.

  2. Create a new election-gas-station.pact file in the pact folder.

  3. Add the minimal Pact code required to define a module.

    Remember that a module definition requires a namespace, a governing owner, and at least one function. In this case, the function you want to add to the module is an implementation of the gas-payer-v1 interface. Because you're deploying the module in your own principal namespace on the local development network, be sure you replace the namespace and keyset with the principal namespace you defined on the development network.

    For example:

    (namespace 'n_14912521e87a6d387157d526b281bde8422371d1) (module election-gas-station GOVERNANCE  (defcap GOVERNANCE ()    (enforce-keyset "n_14912521e87a6d387157d526b281bde8422371d1.admin-keyset")  )   (implements gas-payer-v1))
    (namespace 'n_14912521e87a6d387157d526b281bde8422371d1) (module election-gas-station GOVERNANCE  (defcap GOVERNANCE ()    (enforce-keyset "n_14912521e87a6d387157d526b281bde8422371d1.admin-keyset")  )   (implements gas-payer-v1))

    As you can see in this example, the new module—like the election module—is governed by your admin-keyset.

  4. Create a election-gas-station.repl file in the pact folder and add the following lines of code:

    (load "setup.repl") (begin-tx "Load election gas station module")  (load "root/gas-payer-v1.pact")  (load "election-gas-station.pact")(commit-tx)
    (load "setup.repl") (begin-tx "Load election gas station module")  (load "root/gas-payer-v1.pact")  (load "election-gas-station.pact")(commit-tx)

  5. Execute the transaction in the Pact REPL running locally or in the Docker container.

    If the Pact REPL is installed locally, run the following command inside the pact folder in the terminal shell:

    pact election-gas-station.repl --trace
    pact election-gas-station.repl --trace

    As before, if you don't have the Pact REPL installed locally, you can load the file in the Pact REPL with the following command:

    (load "election-gas-station.repl")
    (load "election-gas-station.repl")

    If you are using the Pact REPL in a browser, you can replace the pact election-gas-station.repl --trace command with (load "election-gas-station.repl") throughout this tutorial.

    You should see that this transaction fails with an error similar to the following:

    election-gas-station.pact:3:3:Error: found unimplemented member while resolving model constraints: GAS_PAYER at election-gas-station.pact:3:3: moduleLoad failed
    election-gas-station.pact:3:3:Error: found unimplemented member while resolving model constraints: GAS_PAYER at election-gas-station.pact:3:3: moduleLoad failed

    The gas-payer-v1 interface you have referenced in your election-gas-station.pact file is defined in the election-dapp/pact/root/gas-payer-v1.pact file. This file is included in your project so that you can test your module in the Pact REPL. The interface is also pre-installed on the Kadena development, test, and main networks, so you don't need to deploy it when you deploy the election-gas-station module. However, you haven't implemented the gas-payer-v1 interface yet in the election-gas-station.pact file.

  6. Open the election-dapp/pact/root/gas-payer-v1.pact file in the code editor on your computer and review the signature for the interface.

    The documentation for the gas-payer-v1 interface file states that GAS_PAYER should compose a capability. You can include a capability within a capability using the built-in compose-capability function. From this documentation, you know that you need to add the ALLOW_GAS capability that always returns true within the GAS_PAYER capability to implement the gas-payer-v1 interface.

  7. Add the capability ALLOW_GAS within the GAS_PAYER capability in the election-gas-station.pact file with the following lines of code:

    (defcap GAS_PAYER:bool  ( user:string    limit:integer    price:decimal  )  (compose-capability (ALLOW_GAS))) (defcap ALLOW_GAS () true)
    (defcap GAS_PAYER:bool  ( user:string    limit:integer    price:decimal  )  (compose-capability (ALLOW_GAS))) (defcap ALLOW_GAS () true)

  8. Execute the transaction using the pact command-line program:

    pact election-gas-station.repl --trace
    pact election-gas-station.repl --trace

    You should see that this transaction fails with an error similar to the following:

    election-gas-station.pact:3:3:Error: found unimplemented member while resolving model constraints: create-gas-payer-guard at election-gas-station.pact:3:3: moduleLoad failed
    election-gas-station.pact:3:3:Error: found unimplemented member while resolving model constraints: create-gas-payer-guard at election-gas-station.pact:3:3: moduleLoad failed

    If you review the gas-payer-v1 interface again, you'll see it defines a create-gas-payer-guard function that you haven't implemented yet in your election-gas-station module. To implement the required guard, you can use the built-in create-capability-guard function and pass the ALLOW_GAS capability into it. The function returns a guard for the ALLOW_GAS capability.

  9. Add the create-capability-guard function and pass the ALLOW_GAS capability into it with the following lines of code:

      (defun create-gas-payer-guard:guard ()    (create-capability-guard (ALLOW_GAS))  )
      (defun create-gas-payer-guard:guard ()    (create-capability-guard (ALLOW_GAS))  )

  10. Execute the transaction using the pact command-line program:

    pact election-gas-station.repl --trace
    pact election-gas-station.repl --trace

    You should see that the transaction succeeds with output similar to the following:

    election-gas-station.pact:3:3:Trace: Loaded module n_14912521e87a6d387157d526b281bde8422371d1.election-gas-station, hash UKFa_ybmNJeGY1JJHtz4mv5h5QaN6-29WMIa4H6SIz8election-gas-station.repl:6:0:Trace: Commit Tx 3: Load election gas station moduleLoad successful
    election-gas-station.pact:3:3:Trace: Loaded module n_14912521e87a6d387157d526b281bde8422371d1.election-gas-station, hash UKFa_ybmNJeGY1JJHtz4mv5h5QaN6-29WMIa4H6SIz8election-gas-station.repl:6:0:Trace: Commit Tx 3: Load election gas station moduleLoad successful

    Now that you have a working implementation of the gas-payer-v1 interface, you can deploy the new module on the development network to test whether it can pay the transaction fee for votes cast using the election application.

Deploy the Pact module on the development network

To deploy the new Pact module on the development network:

  1. Verify the development network is currently running on your local computer.

  2. Open and unlock the Chainweaver desktop or web application and verify that:

    • You're connected to development network (devnet) from the network list.
    • Your administrative account name with the k: prefix exists on chain 1.
    • Your administrative account name is funded with KDA on chain 1.

    You're going to use Chainweaver to sign the transaction that deploys the module.

  3. Open the election-dapp/snippets folder in a terminal shell on your computer.

  4. Deploy your election-gas-station module on the development network by running a command similar to the following with your administrative account name:

    npm run deploy-gas-station:devnet -- k:<your-public-key>
    npm run deploy-gas-station:devnet -- k:<your-public-key>

    The election-dapp/deploy-gas-station.ts script is similar to the election-dapp/deploy-module.ts script, except that it deploys the election-gas-station.pact module. Remember that k:<your-public-key> is the default account name for the administrative account that you funded in Add an administrator account. You can copy this account name from Chainweaver when viewing the account watch list.

    When you run the script, you should see Chainweaver display a QuickSign Request.

  5. Click Sign All to sign the request.

    After you click Sign All, the transaction is executed and the results are displayed in your terminal shell. For example, you should see output similar to the following:

    {  gas: 60414,  result: {    status: 'success',    data: 'Loaded module n_14912521e87a6d387157d526b281bde8422371d1.election-gas-station, hash UKFa_ybmNJeGY1JJHtz4mv5h5QaN6-29WMIa4H6SIz8'  },  reqKey: '0b0yxjVLgKusW5obhDJON6jww1BF0cTfn3O2aiffV7U',  logs: 'lYZH-dn07T7PmnxUMf-h4vch8sPoHfz42olDtV153fA',  events: [    {      params: [Array],      name: 'TRANSFER',      module: [Object],      moduleHash: 'M1gabakqkEi_1N8dRKt4z5lEv1kuC_nxLTnyDCuZIK0'    }  ],  metaData: {    publicMeta: {      creationTime: 1706218447,      ttl: 28800,      gasLimit: 100000,      chainId: '1',      gasPrice: 1e-8,      sender: 'k:5ec41b89d323398a609ffd54581f2bd6afc706858063e8f3e8bc76dc5c35e2c0'    },    blockTime: 1706218445726808,    prevBlockHash: 'so-M2Qv_sPH9se6OigQEfrznrQgl6H5XTI5xMdXK-TY',    blockHeight: 14684  },  continuation: null,  txId: 14728,  preflightWarnings: []}{  status: 'success',  data: 'Loaded module n_14912521e87a6d387157d526b281bde8422371d1.election-gas-station, hash UKFa_ybmNJeGY1JJHtz4mv5h5QaN6-29WMIa4H6SIz8'}
    {  gas: 60414,  result: {    status: 'success',    data: 'Loaded module n_14912521e87a6d387157d526b281bde8422371d1.election-gas-station, hash UKFa_ybmNJeGY1JJHtz4mv5h5QaN6-29WMIa4H6SIz8'  },  reqKey: '0b0yxjVLgKusW5obhDJON6jww1BF0cTfn3O2aiffV7U',  logs: 'lYZH-dn07T7PmnxUMf-h4vch8sPoHfz42olDtV153fA',  events: [    {      params: [Array],      name: 'TRANSFER',      module: [Object],      moduleHash: 'M1gabakqkEi_1N8dRKt4z5lEv1kuC_nxLTnyDCuZIK0'    }  ],  metaData: {    publicMeta: {      creationTime: 1706218447,      ttl: 28800,      gasLimit: 100000,      chainId: '1',      gasPrice: 1e-8,      sender: 'k:5ec41b89d323398a609ffd54581f2bd6afc706858063e8f3e8bc76dc5c35e2c0'    },    blockTime: 1706218445726808,    prevBlockHash: 'so-M2Qv_sPH9se6OigQEfrznrQgl6H5XTI5xMdXK-TY',    blockHeight: 14684  },  continuation: null,  txId: 14728,  preflightWarnings: []}{  status: 'success',  data: 'Loaded module n_14912521e87a6d387157d526b281bde8422371d1.election-gas-station, hash UKFa_ybmNJeGY1JJHtz4mv5h5QaN6-29WMIa4H6SIz8'}

    With this transaction, you now have two Pact modules in your election smart contract.

  6. Verify that the election-gas-station module is deployed on the development network by running the following command:

    npm run list-modules:devnet
    npm run list-modules:devnet

    You should see your modules listed in output similar to the following:

    'n_14912521e87a6d387157d526b281bde8422371d1.election','n_14912521e87a6d387157d526b281bde8422371d1.election-gas-station',
    'n_14912521e87a6d387157d526b281bde8422371d1.election','n_14912521e87a6d387157d526b281bde8422371d1.election-gas-station',

Update the vote function

The next step is to ensure that the signature of the account that votes is within the scope of the GAS_PAYER capability. To do this, you'll update the vote function to accept the following arguments:

  • The voter account name.
  • Zero as the gas limit to allow unlimited gas.
  • Zero as the gas price.

You'll also change the senderAccount in the transaction metadata to use the election-gas-station module so that the election gas station account pays the transaction fee for voting transactions instead of the voter account.

To update the vote function:

  1. Open the frontend/src/repositories/vote/DevnetVoteRepository.ts file in the code editor on your computer.

  2. Update the vote function to change the .addSigner(accountKey(account)) code as follows:

    .addSigner(accountKey(account), (withCapability) => [  withCapability(`${NAMESPACE}.election-gas-station.GAS_PAYER`, account, { int: 0 }, { decimal: '0.0' }),])
    .addSigner(accountKey(account), (withCapability) => [  withCapability(`${NAMESPACE}.election-gas-station.GAS_PAYER`, account, { int: 0 }, { decimal: '0.0' }),])

  3. Update the senderAccount in the transaction metadata to be election-gas-station as follows:

    .setMeta({   chainId: CHAIN_ID,   ttl: 28000,   gasLimit: 100000,   gasPrice: 0.000001,   senderAccount: 'election-gas-station',})
    .setMeta({   chainId: CHAIN_ID,   ttl: 28000,   gasLimit: 100000,   gasPrice: 0.000001,   senderAccount: 'election-gas-station',})

    If you have closed the election application you previously had running, restart it using the devnet backend, then open http://localhost:5173 in your browser.

  4. Click Set Account, copy and paste the voter account name from Chainweaver to vote using that account, then click Save.

  5. Click Vote Now for a candidate, sign the transaction, then open the Developer Tools for your browser and view the console output.

    In the console, you'll see an error similar to the following:

    Uncaught (in promise) Error: Validation failed for hash "shH9LgwlSuvMtm2hR-LvxFTYUOOA-iw359d4y45xO7M": Attempt to buy gas failed with: (read coin-table sender): Failure: Tx Failed: read: row not found: election-gas-station
    Uncaught (in promise) Error: Validation failed for hash "shH9LgwlSuvMtm2hR-LvxFTYUOOA-iw359d4y45xO7M": Attempt to buy gas failed with: (read coin-table sender): Failure: Tx Failed: read: row not found: election-gas-station

    As this error indicates, the election-gas-station account you specified for the senderAccount doesn't exist yet. You need to create and fund the account before it can be used by voters.

Create the gas station account

To make the gas station account more secure, you can create it using a principal account name and guard access to it by using the ALLOW_GAS capability. Because the gas station account is a capability-guarded account, you can use the create-principal Pact function to automatically create its account name with a c: prefix. You can then define the gas station account name as a constant in the election-gas-station.pact file.

To create a capability-guarded account:

  1. Open the election-dapp/pact folder in the code editor on your computer.

  2. Open the election-gas-station.pact file and add the following line of code to the end of the module definition:

    (defconst GAS_STATION_ACCOUNT (create-principal (create-gas-payer-guard)))
    (defconst GAS_STATION_ACCOUNT (create-principal (create-gas-payer-guard)))

  3. Open the ./pact/election-gas-station.repl file and update the transaction to display the capability-guarded gas station account name when you run the file.

    (load "setup.repl") (begin-tx "Load election gas station module")  (load "root/gas-payer-v1.pact")  (load "election-gas-station.pact")  [GAS_STATION_ACCOUNT](commit-tx)
    (load "setup.repl") (begin-tx "Load election gas station module")  (load "root/gas-payer-v1.pact")  (load "election-gas-station.pact")  [GAS_STATION_ACCOUNT](commit-tx)

  4. Execute the transaction using the pact command-line program:

    pact election-gas-station.repl --trace
    pact election-gas-station.repl --trace

    You should see that the transaction succeeds with output similar to the following:

    election-gas-station.repl:5:2:Trace: Loading election-gas-station.pact...election-gas-station.pact:1:0:Trace: Namespace set to n_14912521e87a6d387157d526b281bde8422371d1election-gas-station.pact:3:3:Trace: Loaded module n_14912521e87a6d387157d526b281bde8422371d1.election-gas-station, hash -idAeKp54xkfddZ9MIxQw8GCD4jTZ_Ow8pXWR9zwC-kelection-gas-station.repl:6:0:Trace: Commit Tx 3: Load election gas station moduleLoad successful
    election-gas-station.repl:5:2:Trace: Loading election-gas-station.pact...election-gas-station.pact:1:0:Trace: Namespace set to n_14912521e87a6d387157d526b281bde8422371d1election-gas-station.pact:3:3:Trace: Loaded module n_14912521e87a6d387157d526b281bde8422371d1.election-gas-station, hash -idAeKp54xkfddZ9MIxQw8GCD4jTZ_Ow8pXWR9zwC-kelection-gas-station.repl:6:0:Trace: Commit Tx 3: Load election gas station moduleLoad successful

  5. Open the election-gas-station.pact file in the code editor on your computer.

  6. Add an init function that uses the create-account function from the coin module to create the gas station account in the election-gas-station module:

    (defun init ()  (coin.create-account GAS_STATION_ACCOUNT (create-gas-payer-guard)))
    (defun init ()  (coin.create-account GAS_STATION_ACCOUNT (create-gas-payer-guard)))

    In this code:

    • The first argument of the function is the account name you just defined.
    • The second argument is the guard for the account.

  7. Add an if-statement after the module definition that calls the init function if the module is deployed with { "init": true } in the transaction data:

    (if (read-msg 'init)  [(init)]  ["not creating the gas station account"])
    (if (read-msg 'init)  [(init)]  ["not creating the gas station account"])

  8. Update the election-gas-station.repl file to set init to true for the next transaction by adding the following lines of code after loading the setup.repl module:

    (env-data  { 'init: true })
    (env-data  { 'init: true })

  9. Execute the transaction using the pact command-line program:

    pact election-gas-station.repl --trace
    pact election-gas-station.repl --trace

    You should see that the transaction succeeds with output similar to the following:

    election-gas-station.pact:30:0:Trace: ["Write succeeded"]election-gas-station.repl:10:2:Trace: ["c:qjp3-APtX5tTTSvQSMbJ1KZ1hCru238IUirIqN6tkMI"]election-gas-station.repl:11:0:Trace: Commit Tx 3: Load election gas station moduleLoad successful
    election-gas-station.pact:30:0:Trace: ["Write succeeded"]election-gas-station.repl:10:2:Trace: ["c:qjp3-APtX5tTTSvQSMbJ1KZ1hCru238IUirIqN6tkMI"]election-gas-station.repl:11:0:Trace: Commit Tx 3: Load election gas station moduleLoad successful

    If you're successful loading the election-gas-station module in the Pact REPL, you can update the module deployed on the development network.

Update the gas station module

To deploy the new Pact module on the development network:

  1. Verify the development network is currently running on your local computer.

  2. Open and unlock the Chainweaver desktop or web application and verify that:

    • You're connected to development network (devnet) from the network list.
    • Your administrative account name with the k: prefix exists on chain 1.
    • Your administrative account name is funded with KDA on chain 1.

    You're going to use Chainweaver to sign the transaction that updates the module.

  3. Open the election-dapp/snippets folder in a terminal shell on your computer.

  4. Deploy your election-gas-station module on the development network by running a command similar to the following with your administrative account name:

    npm run deploy-gas-station:devnet -- k:<your-public-key> upgrade init
    npm run deploy-gas-station:devnet -- k:<your-public-key> upgrade init

    Remember that k:<your-public-key> is the default account name for the administrative account that you funded in Add an administrator account. You can copy this account name from Chainweaver when viewing the account watch list. As before, you must include upgrade and init to update the contract and add the GAS_STATION_ACCOUNT capability guard from your election-gas-station module.

  5. Click Sign All to sign the request.

    After you click Sign All, the transaction is executed and the results are displayed in your terminal shell. For example, you should see output similar to the following:

    { status: 'success', data: [ 'Write succeeded' ] }
    { status: 'success', data: [ 'Write succeeded' ] }

    You can also verify that the gas station account exists with a 0 balance on the development network by running the following script:

    npm run coin-details:devnet -- c:<capability-guarded-account-name>
    npm run coin-details:devnet -- c:<capability-guarded-account-name>

    Replace c:<capability-guarded-account-name> with the gas station account name displayed when you tested the election-gas-station.repl file in the Pact REPL.

    After running the script, you should see output similar to the following:

    {  guard: {    cgPactId: null,    cgArgs: [],    cgName: 'n_14912521e87a6d387157d526b281bde8422371d1.election-gas-station.ALLOW_GAS'  },  balance: 0,  account: 'c:qjp3-APtX5tTTSvQSMbJ1KZ1hCru238IUirIqN6tkMI'}
    {  guard: {    cgPactId: null,    cgArgs: [],    cgName: 'n_14912521e87a6d387157d526b281bde8422371d1.election-gas-station.ALLOW_GAS'  },  balance: 0,  account: 'c:qjp3-APtX5tTTSvQSMbJ1KZ1hCru238IUirIqN6tkMI'}

    In the account details, you can see that the ALLOW_GAS capability is used to guard the gas station account. The ALLOW_GAS capability has a prefix that includes your principal namespace and the module name.

    Because the principal namespace is based on your administrative keyset and the principal account of the gas station is based on a capability including that principal namespace, you know that the gas station account name is unique to your administrative account. This account naming scheme makes it impossible for someone with a different keyset to use your gas station account on another chain. As a result, principal accounts in principal namespaces are far more secure than vanity account names in the free namespace.

Fund the gas station account

Now that you have created and deployed a secure gas station account, you're ready to fund the account to pay transaction fees.

To fund the gas station account:

  1. Verify the development network is currently running on your local computer.

  2. Open and unlock the Chainweaver desktop or web application and verify that:

    • You're connected to development network (devnet) from the network list.
    • Your administrative account name with the k: prefix exists on chain 1.
    • Your administrative account name is funded with KDA on chain 1.

    You're going to use Chainweaver to sign the transaction that funds the gas station account.

  3. Open the election-dapp/snippets folder in a terminal shell on your computer.

  4. Transfer one KDA from your administrative account to the gas station account by running the following command:

    npm run transfer:devnet -- k:<your-public-key> c:<capability-guarded-account-name> 1
    npm run transfer:devnet -- k:<your-public-key> c:<capability-guarded-account-name> 1

    Remember to replace k:<your-public-key> with the account name for your administrative account and c:<capability-guarded-account-name> with the account name for your gas station. The transfer.ts script is similar to the transfer-create.ts script except that this script:

    • Transfers KDA from your administrative account and must be signed using Chainweaver.
    • Requires the receiving account to already exist on the blockchain.

  5. Click Sign All to sign the request.

    After you click Sign All, the transaction is executed and the results are displayed in your terminal shell. For example, you should see output similar to the following:

    { status: 'success', data: [ 'Write succeeded' ] }
    { status: 'success', data: [ 'Write succeeded' ] }

  6. Verify that the election gas station account now has a KDA balance on the development network by running the following script:

    npm run coin-details:devnet -- c:<capability-guarded-account-name>
    npm run coin-details:devnet -- c:<capability-guarded-account-name>

    Remember to replace c:<capability-guarded-account-name> with the account name for your gas station.

    After running the script, you should see output similar to the following:

    {  guard: {    cgPactId: null,    cgArgs: [],    cgName: 'n_14912521e87a6d387157d526b281bde8422371d1.election-gas-station.ALLOW_GAS'  },  balance: 1,  account: 'c:qjp3-APtX5tTTSvQSMbJ1KZ1hCru238IUirIqN6tkMI'}
    {  guard: {    cgPactId: null,    cgArgs: [],    cgName: 'n_14912521e87a6d387157d526b281bde8422371d1.election-gas-station.ALLOW_GAS'  },  balance: 1,  account: 'c:qjp3-APtX5tTTSvQSMbJ1KZ1hCru238IUirIqN6tkMI'}

Modify the senderAccount

Now that you have created a capability-guarded account for the gas station, you need to modify the vote function to use this account.

To modify the senderAccount to use the gas station account:

  1. Open the frontend/src/repositories/vote/DevnetVoteRepository.ts file in the code editor on your computer.

  2. Update the senderAccount in the transaction metadata to replace 'election-gas-station' with the c:<capability-guarded-account-name> account name for your gas station.

    For example:

    .setMeta({   chainId: CHAIN_ID,   ttl: 28000,   gasLimit: 100000,   gasPrice: 0.000001,   senderAccount: 'c:qjp3-APtX5tTTSvQSMbJ1KZ1hCru238IUirIqN6tkMI',})
    .setMeta({   chainId: CHAIN_ID,   ttl: 28000,   gasLimit: 100000,   gasPrice: 0.000001,   senderAccount: 'c:qjp3-APtX5tTTSvQSMbJ1KZ1hCru238IUirIqN6tkMI',})

Set the scope for signatures

At this point, most of the work required to use a gas station to pay transaction fees is done. However, if you attempt to vote in the election application and sign the transaction with the voter account name from Chainweaver, the Developer Tools console output will display an error similar to the following:

console
App.tsx:42 Uncaught (in promise) {callStack: Array(0), type: 'TxFailure', message: 'Keyset failure (keys-all): [bbccc99e...]', info: ''}
console
App.tsx:42 Uncaught (in promise) {callStack: Array(0), type: 'TxFailure', message: 'Keyset failure (keys-all): [bbccc99e...]', info: ''}

When you added the ACCOUNT-OWNER capability to the election-dapp/pact/election.pact file, you didn't set the scope for the capability.

You might recall in the previous tutorial that you tested voting with a transaction similar to the following in the voting.repl file:

pact
(env-sigs  [{ 'key  : "voter"   , 'caps : []  }]) (begin-tx "Vote as voter")  (use n_14912521e87a6d387157d526b281bde8422371d1.election)  (vote "voter" "1")  (expect    "Candidate A has 2 votes"    2    (at 'votes (at 0 (list-candidates)))  )(commit-tx)
pact
(env-sigs  [{ 'key  : "voter"   , 'caps : []  }]) (begin-tx "Vote as voter")  (use n_14912521e87a6d387157d526b281bde8422371d1.election)  (vote "voter" "1")  (expect    "Candidate A has 2 votes"    2    (at 'votes (at 0 (list-candidates)))  )(commit-tx)

In this test from the previous tutorial, the caps field passed to env-sigs is an empty array. As a consequence, the signature of the transaction is not scoped to any capability and the signer automatically approves all capabilities required for the function to execute.

However, in this tutorial, you modified the vote function in the frontend/src/repositories/vote/DevnetVoteRepository.ts file to scope the signature of the vote transaction to grant the GAS_PAYER capability, but not the ACCOUNT-OWNER capability. If you sign for some capabilities but not for all capabilities required for a transaction to be executed, the transaction will fail at the point where a capability is required that you didn't sign for. Therefore, you need to add a second capability to the array passed to addSigners in the vote function.

To set the scope for the ACCOUNT-OWNER capability:

  1. Open the frontend/src/repositories/vote/DevnetVoteRepository.ts file in the code editor on your computer.

  2. Add the ACCOUNT-OWNER capability to the .addSigner with the following line of code:

    withCapability(`${NAMESPACE}.election.ACCOUNT-OWNER`, account),
    withCapability(`${NAMESPACE}.election.ACCOUNT-OWNER`, account),

Cast a vote

To cast a vote with the voter account:

  1. Verify the development network is currently running on your local computer.

  2. Open and unlock the Chainweaver desktop or web application and verify that:

    • You're connected to development network (devnet) from the network list.
    • Your voter account name with the k: prefix exists on chain 1.
    • Your voter account name has no KDA account balance (0) on chain 1.

    If you have closed the election application you previously had running:

    • Open the election-dapp/frontend folder in a terminal shell on your computer.
    • Install the frontend dependencies by running the npm install command.
    • Start the frontend application configured to use the devnet backend by running the npm run start-devnet command.

  3. Open http://localhost:5173 in your browser and verify that there's at least one candidate listed.

  4. Click Set Account, copy and paste the voter account name from Chainweaver to vote using that account, then click Save.

  5. Click Vote Now for a candidate, sign the transaction, and wait for it to complete.

    You should see the vote count for the candidate you voted for incremented by one vote.

    View the result after voting
    View the result after voting

Enforce a limit on transaction fees

You now have a functioning gas station for the election application. However, you might want to make some additional changes to make the module more secure. For example, you should enforce an upper limit for transaction fees to help ensure that funds in the gas station account aren't drained too quickly.

To set an upper limit for transaction fees:

  1. Open the election-gas-station.pact file in the code editor on your computer.

  2. Add the following function to retrieve the gas price from the metadata of the transaction using the built-in chain-data function:

    (defun chain-gas-price ()  (at 'gas-price (chain-data)))
    (defun chain-gas-price ()  (at 'gas-price (chain-data)))

  3. Add the following function to force the gas price to be below a specified limit.

    (defun enforce-below-or-at-gas-price:bool (gasPrice:decimal)  (enforce (<= (chain-gas-price) gasPrice)    (format "Gas Price must be lower than or equal to {}" [gasPrice])))
    (defun enforce-below-or-at-gas-price:bool (gasPrice:decimal)  (enforce (<= (chain-gas-price) gasPrice)    (format "Gas Price must be lower than or equal to {}" [gasPrice])))

  4. Update the GAS_PAYER capability by adding (enforce-below-or-at-gas-price 0.000001) right before (compose-capability (ALLOW_GAS)).

    For example:

    (enforce-below-or-at-gas-price 0.000001)(compose-capability (ALLOW_GAS))
    (enforce-below-or-at-gas-price 0.000001)(compose-capability (ALLOW_GAS))

Set limits on the transactions allowed

In its current state, any module can use your gas station to pay for any type of transaction, including transactions that involve multiple steps and could be quite costly. For example, a cross-chain transfer is a transaction that requires a continuation with part of the transaction taking place on the source chain and completed on the destination chain. This type of "continued" transaction requires more computational resources—that is, more gas—than a simple transaction that completes in a single step.

To prevent the gas station account from being depleted by transactions that require multiple steps, you can configure the gas station module to only allow simple transactions, identified by the exec transaction type. Transactions identified with the exec transaction type can contain multiple functions but complete in a single step.

To set limits on the transactions allowed to access the gas station account:

  1. Open the election-gas-station.pact file in the code editor on your computer.

  2. Restrict the transaction type to only allow exec transactions by adding the following line to the start of the GAS_PAYER capability definition:

    (enforce (= "exec" (at "tx-type" (read-msg))) "Can only be used inside an exec")
    (enforce (= "exec" (at "tx-type" (read-msg))) "Can only be used inside an exec")

    An exec transaction can contain multiple function calls. You can further restrict access to the funds in the gas station account by only allowing specific function calls.

    An exec transaction can contain multiple function calls. You can also restrict access to the gas station account by only allowing specific function calls.

  3. Restrict access to only allow one function call by adding the following line to the GAS_PAYER capability definition:

    (enforce (= 1 (length (at "exec-code" (read-msg)))) "Can only be used to call one pact function")
    (enforce (= 1 (length (at "exec-code" (read-msg)))) "Can only be used to call one pact function")

  4. Restrict access to only pay transaction fees for functions defined in the election module by adding the following line to the GAS_PAYER capability definition:

    (enforce  (= "(n_14912521e87a6d387157d526b281bde8422371d1.election." (take 52 (at 0 (at "exec-code" (read-msg)))))  "Only election module calls are allowed")
    (enforce  (= "(n_14912521e87a6d387157d526b281bde8422371d1.election." (take 52 (at 0 (at "exec-code" (read-msg)))))  "Only election module calls are allowed")

    Remember to replace the namespace with your own principal namespace.

Update the smart contract on the development network

After you've completed the changes to secure the gas station account, you are ready to update the smart contract you have deployed on the development network and complete the workshop.

To update the smart contract and complete the workshop:

  1. Open the election-dapp/pact folder in a terminal shell on your computer and verify all of the tests you created in the workshop pass using the Pact REPL.

    • pact/candidates.repl
    • pact/election-gas-station.repl
    • pact/keyset.repl
    • pact/module.repl
    • pact/namespace.repl
    • pact/principal-namespace.repl
    • pact/setup.repl

  2. Verify the development network is currently running on your local computer.

  3. Open and unlock the Chainweaver desktop or web application and verify that:

    • You're connected to development network (devnet) from the network list.
    • Your administrative account name with the k: prefix exists on chain 1.
    • Your administrative account name is funded with KDA on chain 1.

  4. Open the election-dapp/snippets folder in a terminal shell on your computer.

  5. Update your election-gas-station module on the development network by running a command similar to the following with your administrative account name:

    npm run deploy-gas-station:devnet -- k:<your-public-key> upgrade
    npm run deploy-gas-station:devnet -- k:<your-public-key> upgrade

    Remember that k:<your-public-key> is the default account name for the administrative account that you funded in Add an administrator account. You can copy this account name from Chainweaver when viewing the account watch list. When you run the script, you should see Chainweaver display a QuickSign Request.

  6. Click Sign All to sign the request.

    After you click Sign All, the transaction is executed and the results are displayed in your terminal shell.

  7. Verify your contract changes in the Chainweaver Module Explorer by refreshing the list of Deployed Contracts, then clicking View for the election-gas-station module.

    After you click View, you should see the updated list of functions and capabilities. If you click Open, you can view the module code in the editor pane and verify that the election-gas-station module deployed on the local development network is what you expect.

Next steps

In this tutorial, you learned how to:

  • Add a second module to your smart contract.
  • Define a gas station account that pays transaction fees on behalf of other accounts.
  • Restrict access to the gas station account based on conditions you specify in the Pact module.
  • Deploy the gas station module on the development network.

In this workshop, you configured an election application to use the Kadena client to interact with a smart contract deployed on the Kadena blockchain as its backend. The workshop demonstrates the basic functionality for conducting an election online that uses a blockchain to provide more efficient, transparent, and tamper-proof results. However, as you saw in Add vote management, it's possible for individuals to vote more than once by simply creating additional Kadena accounts. That might be a challenge you want to explore.

As an alternative, you might want to deploy the election application and smart contract on the Kadena test network, making it available to community members.

We can't wait to see what you build next.

To see the code for the activity you completed in this tutorial, check out the 00-complete branch from the voting-dapp repository by running the following command in your terminal shell:

bash
git checkout 00-complete
bash
git checkout 00-complete
